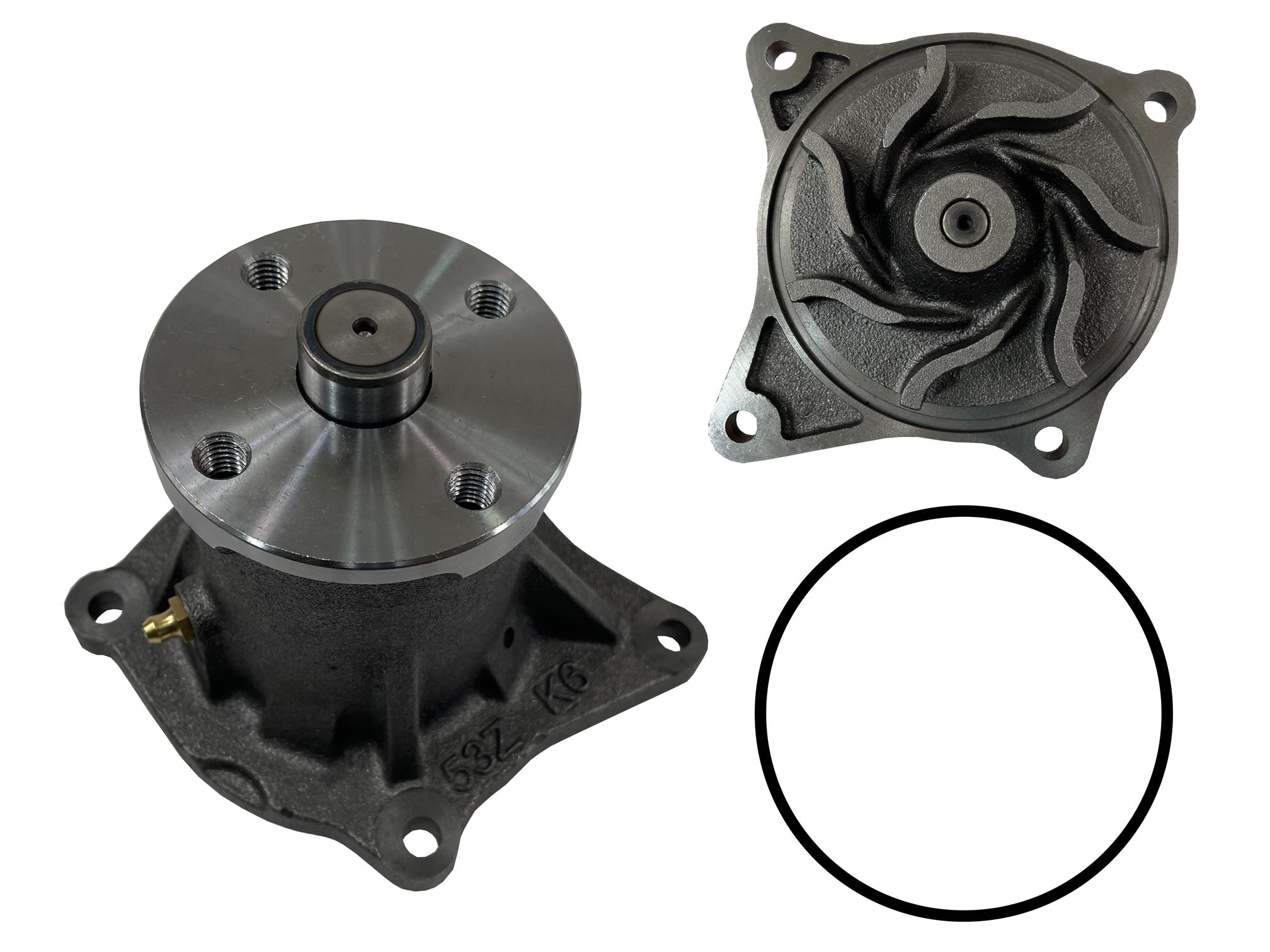

Water Pump | Caterpillar 3064/3066 | 125-2989

CATERPILLAR 3066

TURBOCHARGER

6 Cylinder

Bore: 102.00 mm / 4.016 in

Stroke: 130.00 mm / 5.118 in

APPLICATIONSSERIAL NUMBER

1XM – UP, 5BR – UP, 6CR1 – UP, 7JK01661-04480, 7JK08058-19537, 7JK1 – UP, BBL1 – UP, BDE1 – UP, BEA1 – UP, BCN1 – UP, 7JK54000-UP, GPA1 – UP, BTG1 – UP, HKT1 – UP, CXY1 – UP, KGL1 – UP, DAH1 – UP, MAB1 – UP, DHK1 – UP, MAE1 – UP, EAG1 – UP, MDY1 – UP, EBY1 – UP, PAB1 – UP, FAA1 – UP, PAC1 – UP, FXK1 – UP, RAW1 – UP, GAD1 – UP, SAH1 – UP, GKL1 – UP, SBN1 – UP, GNG1 – UP, TBR1 – UP, 7JK1 – UP, AXK, BBL1 – UP, BCN1 – UP, BDE1 – UP, BEA1 – UP, BMZ, BTG, CXY, CYD, DBG1, EAG, EBY, EGA1, EGL1, GAD, GNG, GPA, JPL1, KCR, MAB1 – UP, MAC, MCF, PAB1 – UP ,PBM, RAW1 – UP, SBN1 – UP, SDC

ARRANGEMENT NUMBER

1099513, 2144457, 1319017, 1765032, 1099514, 7i7758, 7i7674, 162-6351, 162-6206, 162-6187, 162-6190, 162-6206, 162-6351, 222-8376, 162-6351, 162-6206, 162-6187, 162-6190, 162-6206, 162-6351, 222-8376, 222-8198, 239-6530, 201-3721, 201-3878, 201-3880, 205-6695, 205-6731, 205-6743, 217-5494, 222-8277, 239-6511, 239-6563, 239-6568, 255-3065, 272-4638, 282-4707, 201-3721, 205-6695, 287-0092, 287-0093, 287-0095, 287-0097, 287-0098, 287-0099, 287-0100, 287-0101, 287-0102, 287-0103, 287-0104, 287-0105, 305-4783, 305-4858

MACHINE MODELS

320 EXCAVATOR, 320L EXCAVATOR, 320N EXCAVATOR, 320B EXCAVATOR, 320BL EXCAVATOR, 322B EXCAVATOR, 320C EXCAVATOR, 320CL EXCAVATOR, 320CLN EXCAVATOR, 320CS EXCAVATOR, 320C EXCAVATOR, 320CL EXCAVATOR, 320CLN EXCAVATOR, 318CL EXCAVATOR, 318CLN EXCAVATOR, 321CLCR EXCAVATOR, 323DL EXCAVATOR, 318C EXCAVATOR, 318CL EXCAVATOR, 318CLN EXCAVATOR, 319CLN EXCAVATOR, 320C EXCAVATOR, 320CL EXCAVATOR, 320D EXCAVATOR, 320DL EXCAVATOR, 320DRR EXCAVATOR, 320DLRR EXCAVATOR, 320CU EXCAVATOR, 320CLU EXCAVATOR, 321CLCR EXCAVATOR, 323D EXCAVATOR, 323DL EXCAVATOR, 323DLN EXCAVATOR

Caterpillar 3064T

Engine Model: 3064T

Engine Desc: TURBOCHARGER

Engine Info: 4 Cylinder

Engine Dimensions

Bore: 102.00 mm

Stroke: 130.00 mm

Equipment Models

ESN

6LK1-Up

Applications

311

311C

312C

314C

311B

312

312B

Engine Arrangement

201-3861

266-6188

205-6714

205-6715

266-6194

266-6186

162-6333

118-9886
