John Deere 6081 8.1 Liter Power Tech Engine Overhaul?Rebuild?Kit

John Deere 6081 Power Tech 8.1L Engine

Tier 1

High Compression Piston

Models: 4801 & 4803 To ESN 199,999

Engine Model Number:

6081HRW27, 6081AF001, TOK504201A

Specifications:

6 Cylinder

Bore: 4.56 in 116 mm

Pin ?: 1.8742 in (+/- .0002) = 47 mm

Con Rod (m): R116340 (To ESN 86,536), R501034 (From ESN 86,537)

Piston (m): RE70688, RE64509

Applications

AGRICULTURAL:

1270D8300T, 1470D8310, 22568310T, 22588400T, 22649100, 22669100, 77109510 SH, 78109550, 81009550 SH, 8100T9560 WTS, 81109560i WTS, 8110T9580 WTS, 82009580i WTS, 8200T9640 WTS, 82109640i WTS, 8210T9970, 8300,

CONSTRUCTION:

330 C LC759 JH, 330 LC762 B, 330 LCR770 C, 370770 C Series II, 370 C770 D, 530 B770 CH, 535770 CH Series II, 560 D772 D, 608 L772 CH, 608 S772 CH Series II, 644 G848 G, 644 H850, 644 J850 C, 660 D850 C-II, 724 J850J, 740 G853 G, 748 G870 D, 748 G-II872 D, 748 G-III900, 753 GL903, 753 J950, 753 JH953 G, 759 G1710 D, 759 J3554,

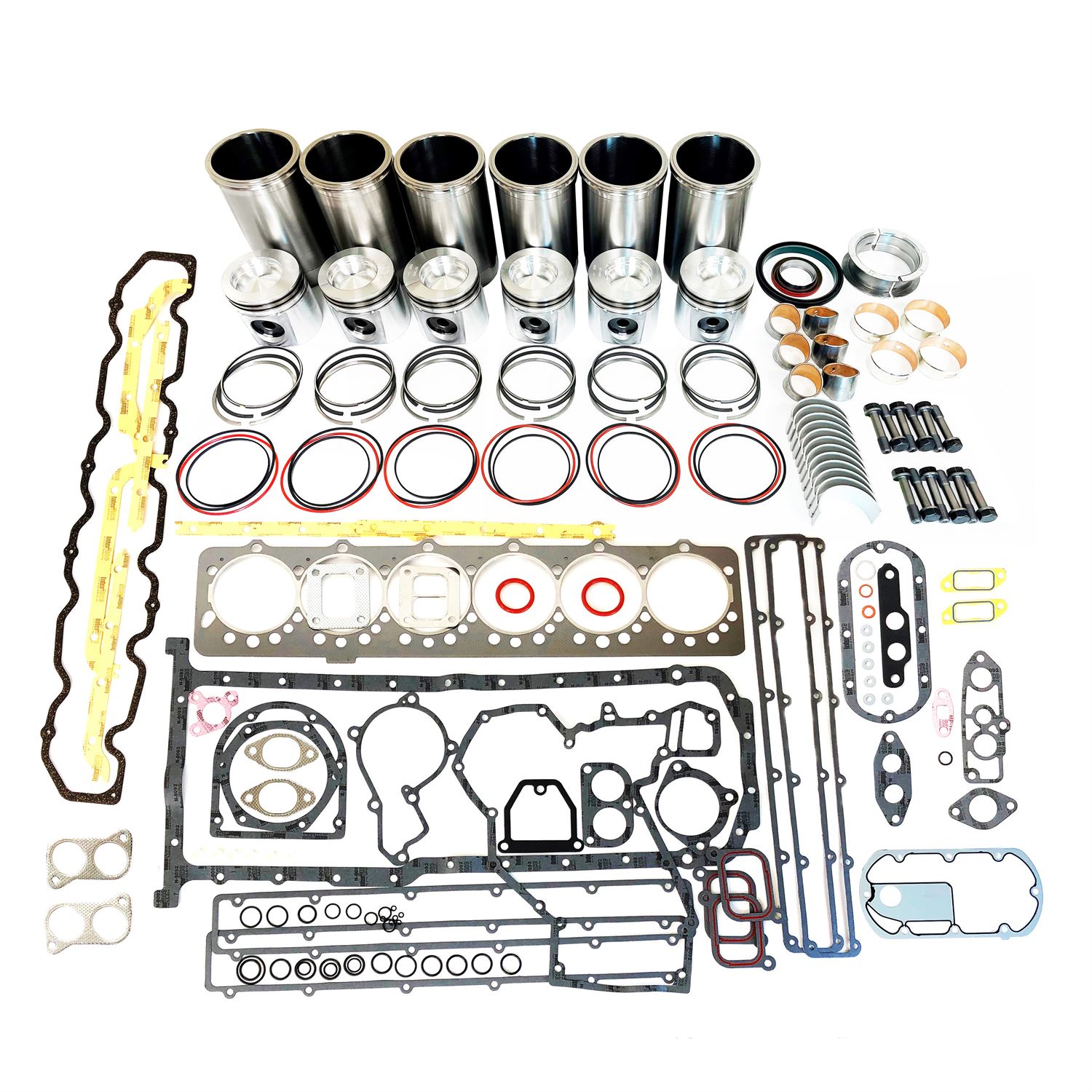

Overhaul kit includes:

6-CYLINDER KITS (LINER, PISTON, RING-SET, PIN & RETAINERS)

1-MAIN BEARING SET

1-CONNECTING ROD BEARING SET

1-THRUST WASHER SET

1-CRANK FRONT SEAL

1-CRANK REAR SEAL

1-TOP GASKET SET

1-BOTTOM GASKET SET

1-VALVE COVER GASKET

1-CONNECTING ROD BUSHING SET

1-CONNECTING ROD BOLT SET

1-CONNECTING ROD NUT SET

1-CAM BUSHING? SET
